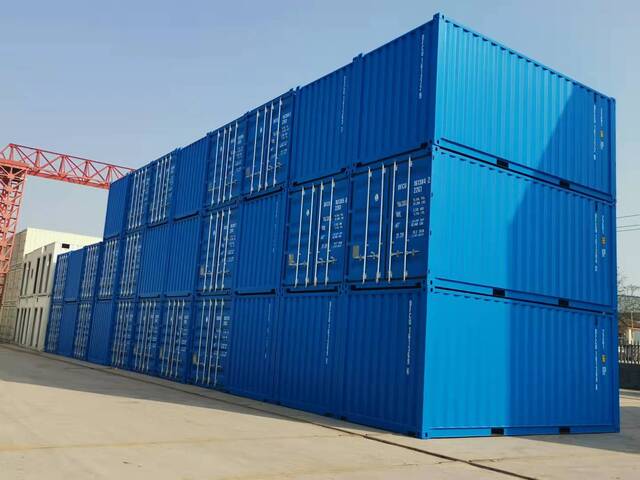

ISO Standard 20GP shipping container
Inquiry PORT-HOLDING INTERNATIONAL GROUP LIMITED

The specifications of 20’ GP containers:

1  Dimension


External Dimensions

Internal Dimensions

Length

6,058 ( 0, -6 ) mm

5,898 ( 0, -6 ) mm

Width

2,438 ( 0, -5 ) mm

2,352 ( 0, -5 ) mm

Height

2,591 ( 0, -5 ) mm

2,393 ( 0, -5 ) mm

2  Door Opening

Width   ..................

2,340 ( 0,-5 )

mm

Height  ...................

2,280 ( 0,-5 )

mm

3  Fork Pocket

Width   ..................

360

mm

Height  ...................

115

mm

Center distance .......

2,080

mm

4  Inside Cubic Capacity

                        33.2 cu.m        1,170 cu.ft

5  Rating

Maximum Gross Weight ..............

30,480 kg

67,200 lbs

Maximum Payload      .............

28,300 kg

62,400 lbs

Tare Weight           ...............

2,180 kg

4,800 lbs
