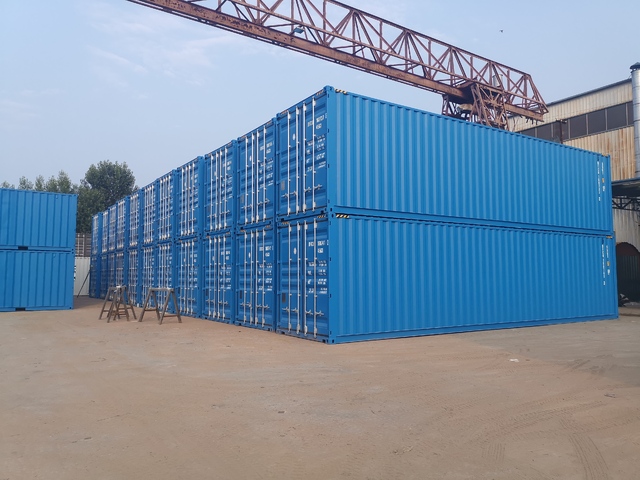

40HC Standsard Shipping Container
Inquiry PORT-HOLDING INTERNATIONAL GROUP LIMITED

The specifications of 40’ HC containers:

1  Dimension


External Dimensions

Internal Dimensions

Length

12,192 (0, -10) mm

12,032 (0, -10) mm

Width

2,438 (0, -5) mm

2,352 (0, -5) mm

Height

2,896 (0, -5) mm

2,698 (0, -5) mm

2  Door Opening

Width   ..................

2,340 (0, -5)

mm

Height  ...................

2,585 (0, -5)

mm

3  Gooseneck Tunnel

Length  ..................

  3,315

mm

Width   ..................

  1,029 (+3, 0)

mm

Height  ...................

    120 (0, -3)

mm

4  Inside Cubic Capacity

                        76.4cu.m        2,700 cu.ft

5  Rating

Maximum Gross Weight ..............

30,480 kg

67,200 lb

Maximum Payload      .............

26,580 kg

58,600 lb

Tare Weight (±2%)    ...............

3,900 kg

8,600 lb
